Innovative Carton Cardboard Conveyor Systems
Marca :Newkuani
A Origem do Produto :China
O tempo de entrega :20days
A capacidade de abastecimento :100sets/month
Cardboard logistics system video：
Module Plastic Belt X-Y Conveyor：
1) Main parameter
l Dimension： L*W*390mmH;
l Max capacity：2000KG;
l Motor: Boneng; Power: AC380V, X direction,2.2kw; Y direction,3.0kw;
l Climbing mechanism: SMC pneumatic components, 6kg pressure;
l Belt speed：Max30m/min, Schneider inverter;
2) Plastic belt：POM material, plastic thickness 12mm，modules type，maintain easy and simple, less cost, supporting article adopts ultra-high molecular weight pressure, wear-resisting material, the lowest friction between plastic belt and supporting article.
3) Frame material：Using plate cold pressing molding, the surface electrostatic painting treatment. Function: Using for transferring the cardboard sheets.

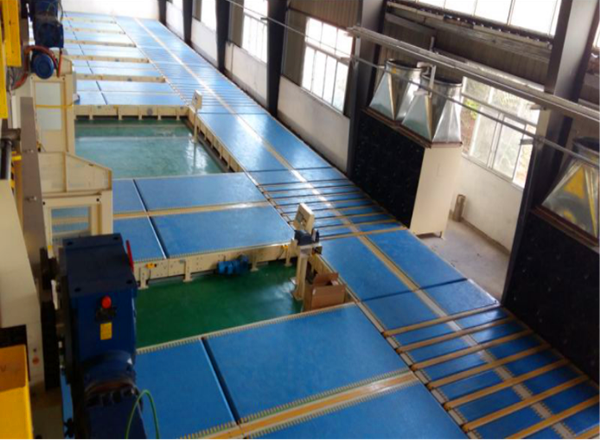

4) Outline Example:
